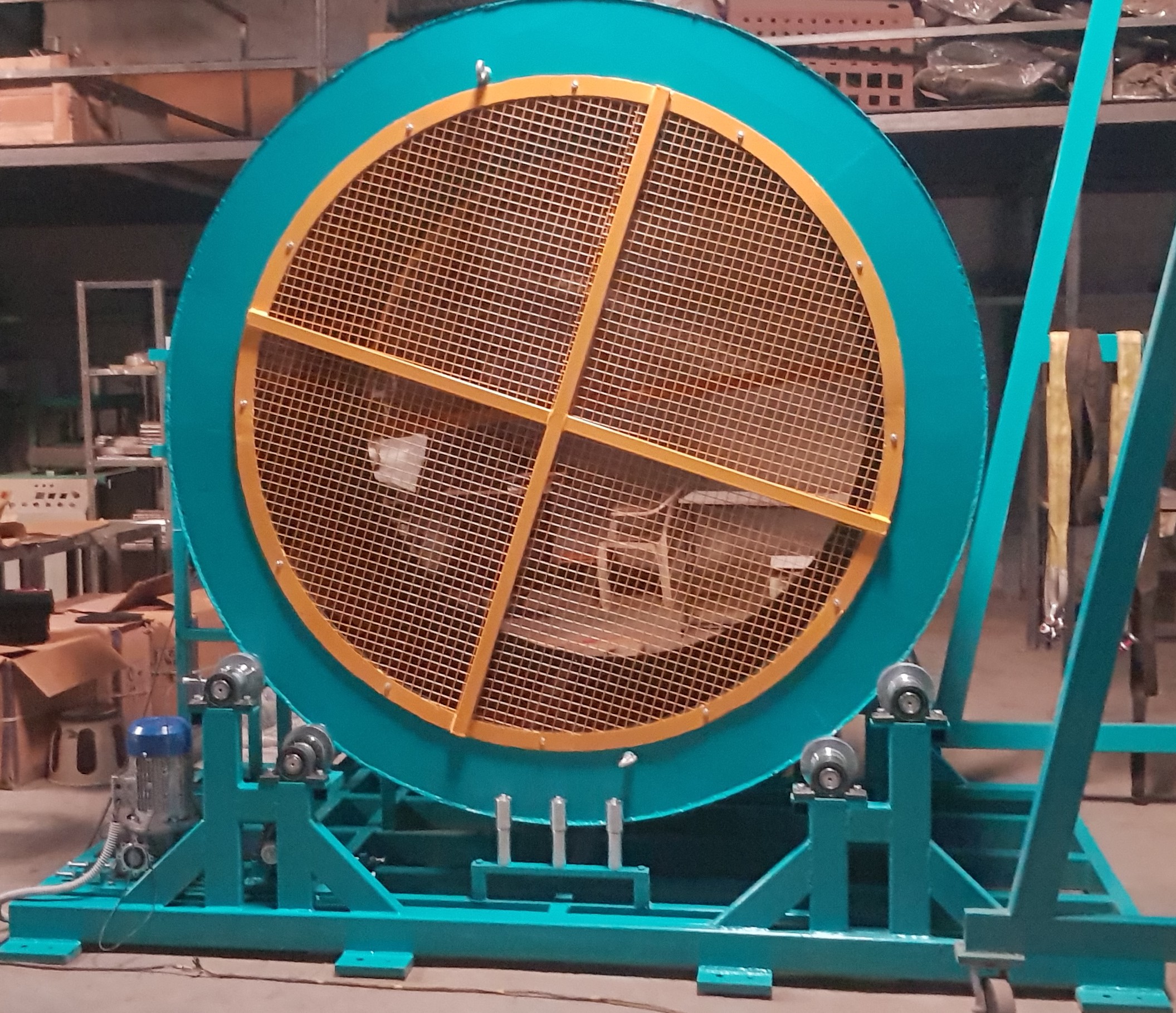

Tumble Testing Machine

• Drum Diameter: 2000 mm
• Drum Width: 1200 mm
• Inner Drum: Hexagonal wooden structure
• Rotation Speed: 1.5 to 3 RPM (Adjustable)
• Control: PLC for revolution counting

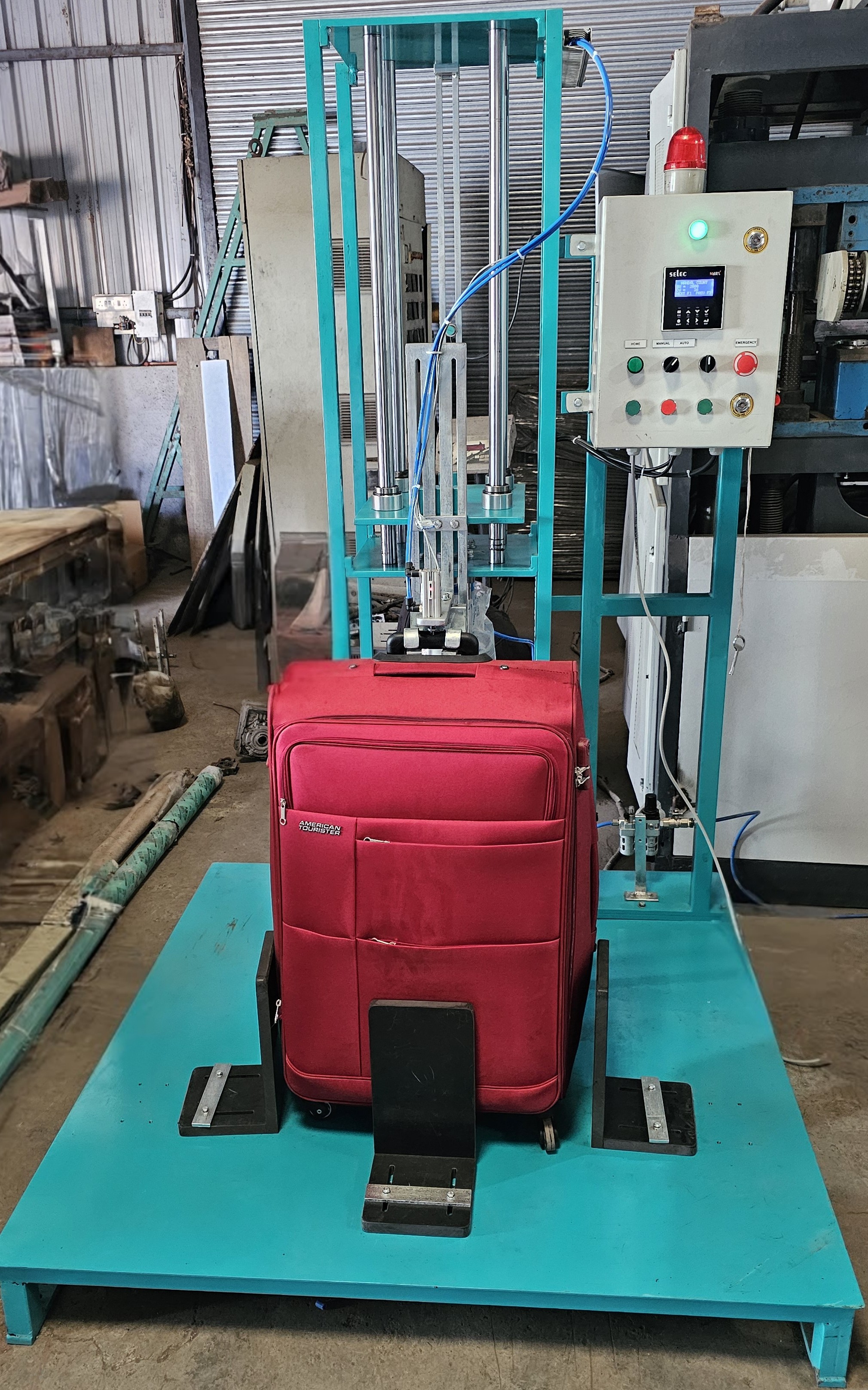

Handle Testing Machine

• Max Machine Speed: 18 to 22 cycles per minute
• Max Cycle Count: 9999
• Operation Logic: Pause feature after every 250 cycles for 3 minutes (auto restart)
• Operation Logic: Machine stops after every 500 cycles (manual restart required)
• Display: Cumulative cycle display
• Alert: Buzzer alert at every stage
• Lifting Height: 50 mm (Range: 1025 to 1075 mm)

Jolt Testing Machine

• Jolt Speed: 30 strokes per minute
• Jolt Height: 100 mm
• Connected Power: 1 HP Supply
• Max Weight Capacity: 50 kg
• Feature: Provision for 2 wheels resting in degree

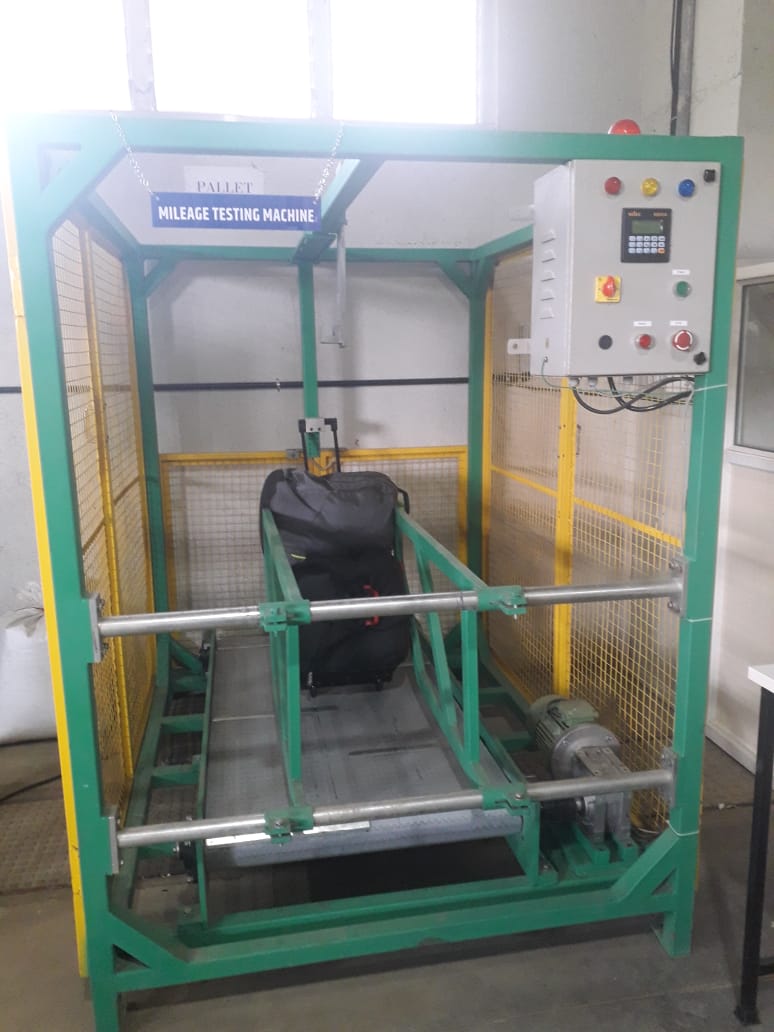

Mileage Testing Machine (Wheel Testing)

• Belt Width: 650 mm
• Belt Length: 1.2 meters
• Belt Speed: 4 km per hour
• Connected Power: 1 HP Supply
• Operation Logic: Pause of 10 minutes after every 4 km of running
• Max Setting: 32 km
• Testing Provision: For 2-wheel and 4-wheel items
• 2-Wheel Feature: Provision for holding at 45°
• Bumps Distance: 18 inches
• Bumps Height: 6 mm
