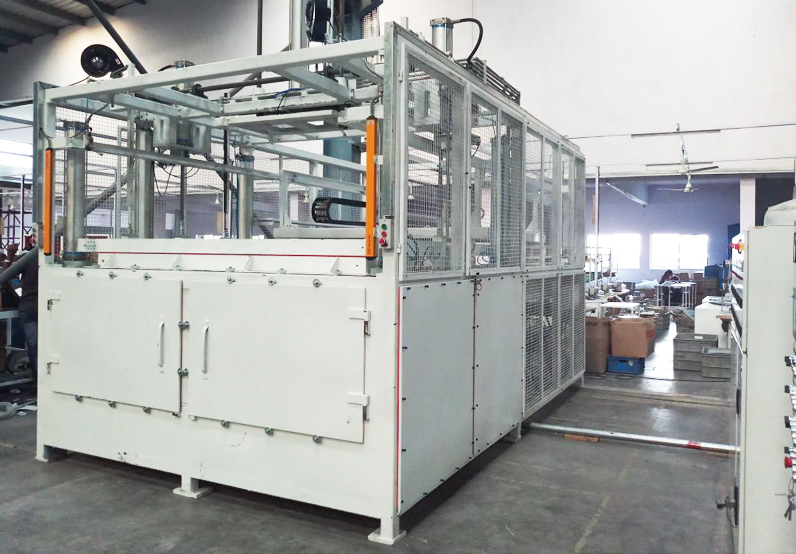

Machine Model : SPM 1822

• Max. Forming Area : 1800mm X 2200mm
• Max. Product Height : 500 mm
• Max. Product Size : 1700 X 2100 mm
• Max. Sheet Size : 1760 X 2250 mm
• Forming Type : Vacuum Forming (Thick Wall)
• Material : PS, HIPS, HDPE, PVC of thermoforming grade
• Heating Element : Ceramic Heater
• Heating Type : Sandwich Heating
• Detailed Machine Specification Catalogue Download PDF

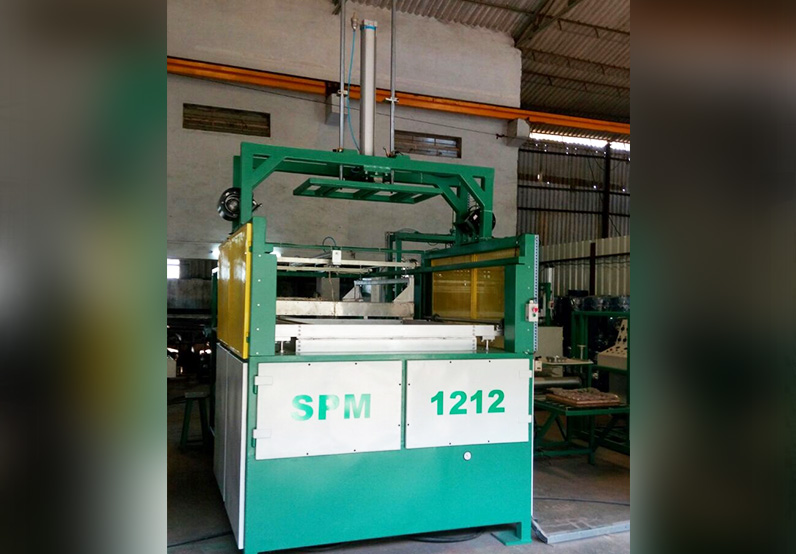

Machine Model : SPM 1212

• Max. Forming Area : 1200mm X 1200mm
• Max. Product Height : 500 mm
• Max. Product Size : 1100 X 1100 mm
• Max. Sheet Size : 1260 X 1260 mm
• Material : PS, HIPS, HDPE, PVC of thermoforming grade
• Heating Element : Ceramic Heater
• Heating Type : Sandwich Heating (Optional)
• Heating Control : Zone-wise by Temp-Controller
• Detailed Machine Specification Catalogue Download PDF

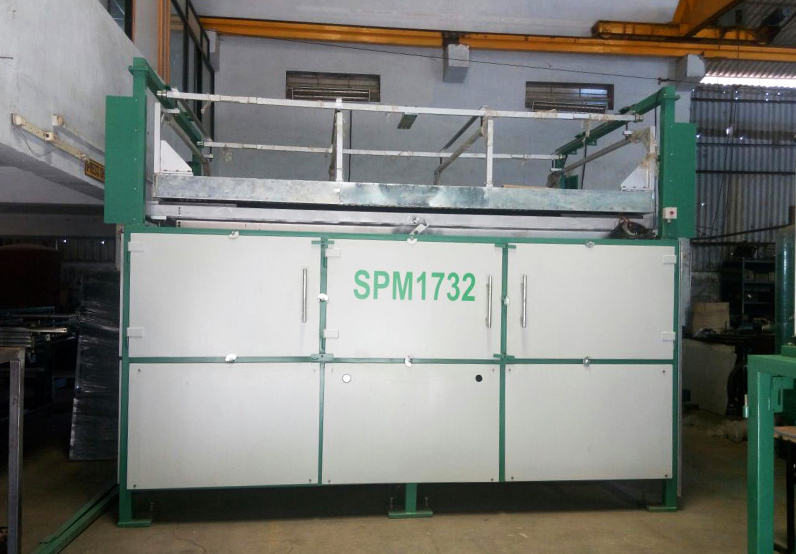

Machine Model : SPM 1732

• Max. Forming Area : 1700mm X 3200mm
• Max. Product Height : 500 mm
• Max. Product Size : 1600 X 3100 mm
• Max. Sheet Size : 1760 X 3250 mm
• Material : PS, HIPS, HDPE, PVC of thermoforming grade
• Heating Element : Ceramic Heater
• Heating Type : Sandwich Heating
• Heating Control : Zone-wise by Temp-Controller
• Detailed Machine Specification Catalogue Download PDF

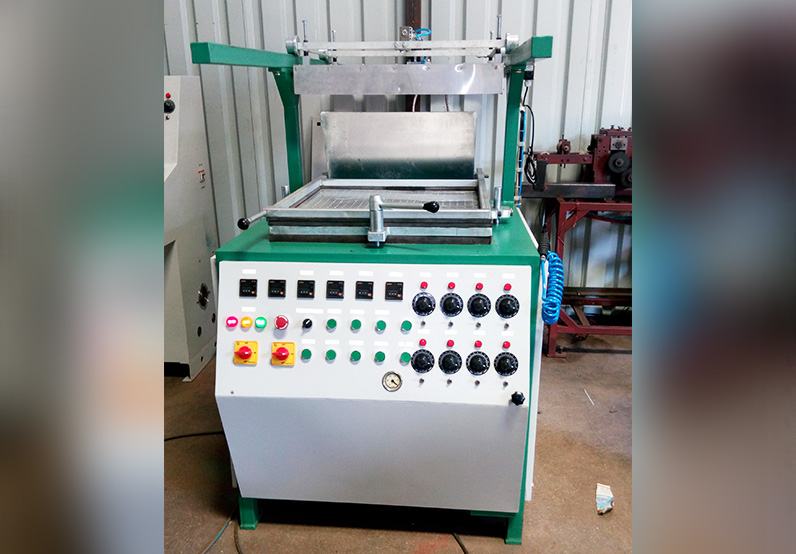

Machine Model : SPM 1824i

• Max. Forming Area : 450mm X 600mm
• Max. Product Height : 100 mm
• Max. Product Size : 350 X 500 mm
• Max. Sheet Size : 500 X 650 mm
• Material : PS, HIPS, HDPE, PVC of thermoforming grade
• Heating Element : Ceramic Heater
• Heating Type : Sandwich Heating (Optional)
• Heating Control : Zone-wise by Temp-Controller
• Detailed Machine Specification Catalogue Download PDF
